SMD Vs. SMT, what is The Difference?

An SMD, or surface-mounted device, is an electronic component that you just would find on a board. An SMT is a way of placing electronic parts (like an SMD) on the board. In electronic manufacturing services, the SMT procedure frequently works with SMDs, probably adding to the uncertainty.
SMD Vs. SMT, What is The Difference?


SMT and SMD are two little acronyms that get drawn up plenty within the electronics manufacturing service world. On paper, they only vary by one letter, but in practice, there are lots more separating SMTs and SMDs. Chiefly, one could be a process and therefore the other could be a device. An SMD, or surface-mounted device, is an electronic component that you just would find on a board. An SMT is a way of placing electronic parts (like an SMD) on the board. In electronic manufacturing services, the SMT procedure frequently works with SMDs, probably adding to the uncertainty. And while it’s important to understand the difference between the two, the worth of either is amplified once they are utilized in concert.

What are Surface Mount Devices (SMD)?

Surface Mount Devices or the SMD are the components fitted onto a printed circuit board. These devices are ideal in an exceeding world that’s always trying to find faster, more flexible, and cost-effective devices. Thus, this can be the explanation that SMD has evolved significantly. Previously, the SMD was wired onto the circuit boards; the new SMD uses pins that may be soldered directly on the PCBs.

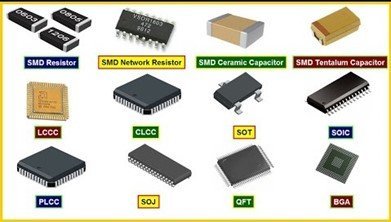

Surface Mount Devices
Surface Mount Devices

With the SMD, smaller components can make sure you achieve identical functions. If so, components can’t only fit into a tiny low space; they’re also more functional. Thus, making it possible to produce more circuits onto the board, and since no drilling is required, the method is fast and cost-effective. one more reason to use the SMD is that just in case of any errors, small mistakes are corrected automatically because the physical phenomenon of the molten pull’s components. It also offers fewer unwanted RF signal effects and high-frequency performance. Since they’re small and straightforward to use, you may find that they’re more cost-effective than the devices which will require you to drill a hole to put in. The features found within the SMD are miniaturization, don’t have a lead of any kind, and are suitable for surface assembly on PCB.

Surface Mounted Devices (SMDs) are the particular components that are fitted onto printed circuit boards. In an exceeding world that demands faster, more flexible, and cheaper components, SMDs have evolved significantly. Newer SMDs now use pins that will be soldered directly onto PCBs instead of using leads and wiring those through a printed circuit. The benefits of using pins versus leads are numerous. for instance, smaller components may be wont to achieve the identical function. this suggests that more components are fitted onto a smaller card, and increased functionality is feasible. And since no holes have to be drilled through the board, the mounting process is quicker and more cost-effective.

Types of SMD

  • Chip Resistors
  • Network Resistors
  • Capacitors
  • Diode
  • LEDs
  • Transistors
  • IC

Features of SMD

  • Miniaturization
  • No lead
  • Suitable for surface assembly on PCB

What is Surface Mount Technology (SMT)?

SMT or the surface mount technology is a new design accustomed arrange components printed on a circuit card. The previous versions employed in the mounting of the circuit involved board components using holes. With this method, careful preparation was needed to make sure that each one of the leads used the correct technique and fit various boards. It also requires an outsized board that may fit multiple circuits.

SMT Factory

But with the SMT, the assembling procedure is well organized since the electronic parts are soldered in a straightway on the board. Since this system doesn’t require the passing of the leads through the PCBs, the assembling process is straightforward, efficient, and cost-effective. Besides, the SMT will save space because it may be mounted on each side, allowing more components to be hosed on a tiny low board. Thus, this is often the explanation modern devices are small despite packing plenty of features.

When working with a little component, the chance of error is high, but with the SMT, mistakes can easily be fixed by employing a molten solder. With the previous visions, fixing errors was lengthy and complicated; the utilization of SMT implies that one will get reduced radiations. The wire attachment is low, and there’s no drilling of holes on the board which is suitable during these technology times. The SMT features are that there’s no lead present, and if there are any leads available, they’re short. The SMT also has the first component and therefore the solder joint on the identical PCB side.

Features of SMT

  • Parts have no leads
  • The main body of the electronic part and the solder weld is on the same side of the Printed Circuit Board
  • Reduce PCB area
  • Reduced weight
  • Installation is not difficult to automate

Difference Between SMT and SMD

The SMT uses a mounting technology of mounting and soldering surfaces which will be used on the PCB. On the opposite hand, the employment of the SMD refers to using the electronic component that may be placed on a PBC by using the SMT tools. The technique uses components that are soldered on the PCB by employing a soldering paste.

When it involves manufacturing the SMT is one that’s mostly used since it’s cost-effective. The SMT will offer stronger bonds, ideal for components that are under stress, and one that’s good for prototyping.

Where SMT and SMD Combine

When looking into SMD Vs SMT, the SMT and also the SMD were both placed using hands. The machines may well be used on a number of the pieces but were limited to the scale and also the type that was used. However, the manufacturing boards use the SMT to offer a faster way of constructing devices. In the past, small bits of silver were employed in the attaching of the components. Though these components are employed in this, they are available during a mixture of flux solder. The simplest part is that they work fast combing thousands of SMD compared to the few hundreds that were fixed by hand.

When it involves the PCB assembly what you must note is that both the SMD and therefore the SMT will be used. The technique that may be used will rely on the materials used. What you would like to notice is that you simply can use both the SMT and therefore the SMD on the PCB assembly.
